eq02+ LifeMonitor
Capture real-time physiological data with our flagship clinical-grade vital signs monitoring sensor.

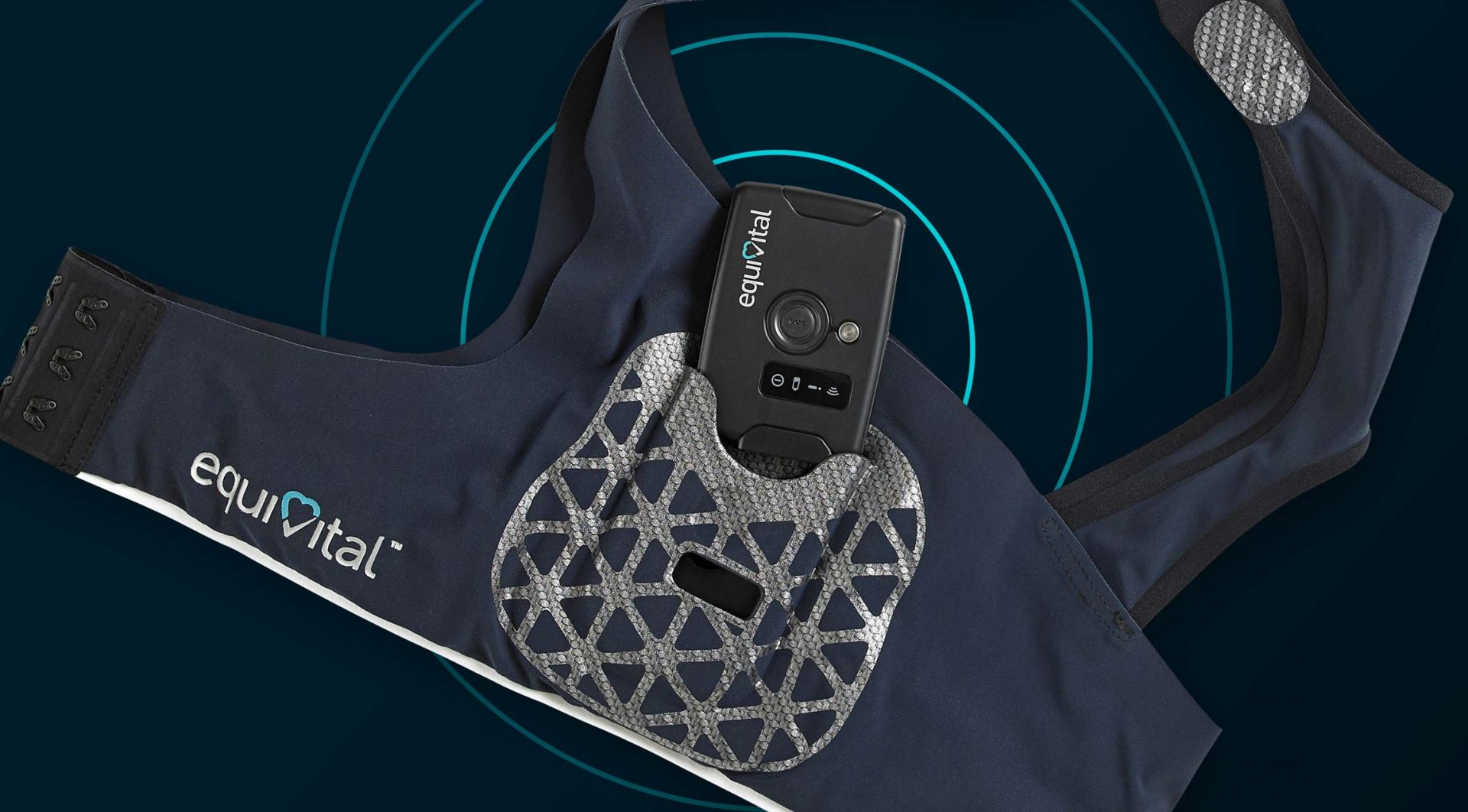

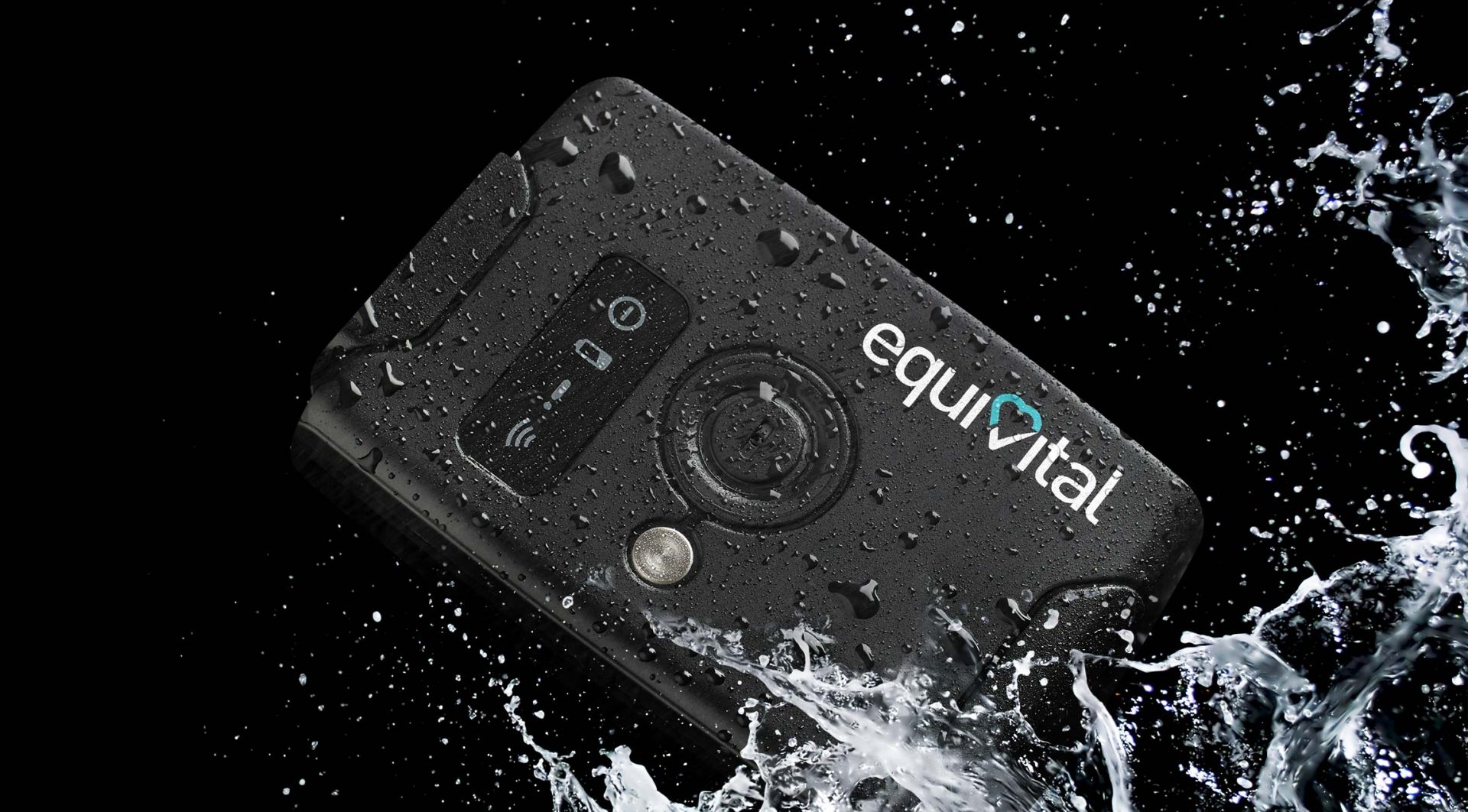

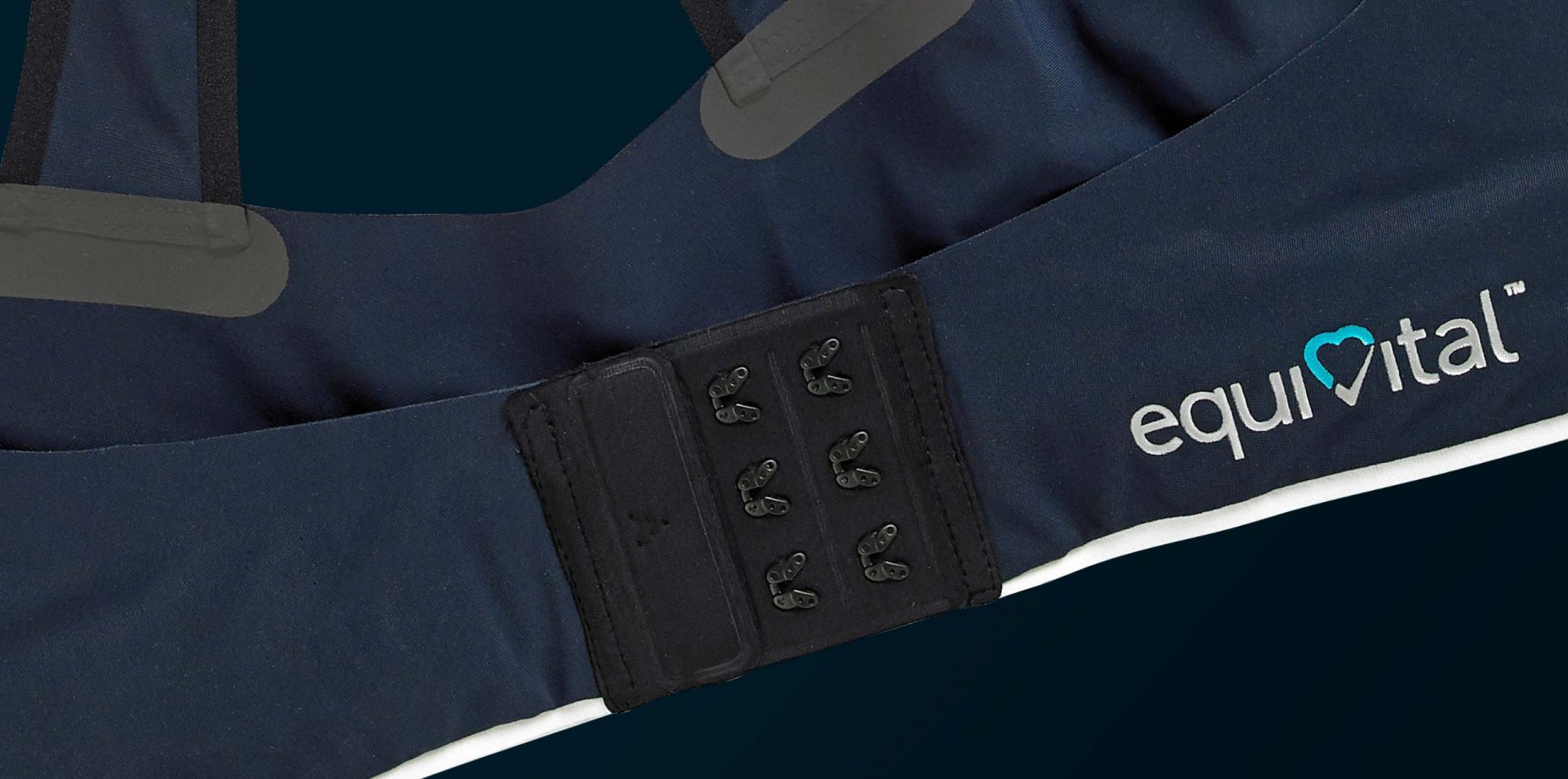

The Equivital eq02+ LifeMonitor and belt can withstand a wide fluctuation of temperatures and other environmental variations. It can work between -4 to 130 degrees F, is waterproof with an IP67 rating, can withstand altitudes between -300ft to 20,000ft and humidity levels between 0 – 95%.
Parameters:
• ECG, ECG waveforms, HR, R-R interval.
• Respiratory rate and respiratory waveforms.
• Skin temperature.
• Galvanic skin response.
• Core temperature capsule/Dermal patch*.
• Accelerometer, X,Y,Z, Activity.
• Body position/Movement.
• Oxygen saturation*.
• Blood pressure*.
* Measured using a compatible ancillary sensor
Connected Healthcare Solutions / Life Monitor Solutions / eq02+
Capture real-time physiological data with our flagship clinical-grade vital signs monitoring sensor.
The Equivital eq02+ LifeMonitor and belt can withstand a wide fluctuation of temperatures and other environmental variations. It can work between -4 to 130 degrees F, is waterproof with an IP67 rating, can withstand altitudes between -300ft to 20,000ft and humidity levels between 0 – 95%.
Parameters:
• ECG, ECG waveforms, HR, R-R interval.
• Respiratory rate and respiratory waveforms.
• Skin temperature.
• Galvanic skin response.
• Core temperature capsule/Dermal patch*.
• Accelerometer, X,Y,Z, Activity.
• Body position/Movement.
• Oxygen saturation*.
• Blood pressure*.
* Measured using a compatible ancillary sensor
eq02+
• Multi-parameter monitoring including ECG, respiration, tri axis accelerometer and temperature.
• A wide selection of wired or wireless sensors integrate with the eq02+ LifeMonitor.
• Very high data quality with very low data loss rates .
• Easily configured.
• Simple to use, log, transmit and export data.
• Light weight and optimised for long wear comfort.
• Up to 48hrs battery life from integral power supply, with hot swap ancillary power packs for extended monitoring.
• 8GB memory for up to 50 days of continuous data logging.
• 9 belt sizes to cater for different body types.
• Flexible software platforms with development modules available for 3rd party application developers.
